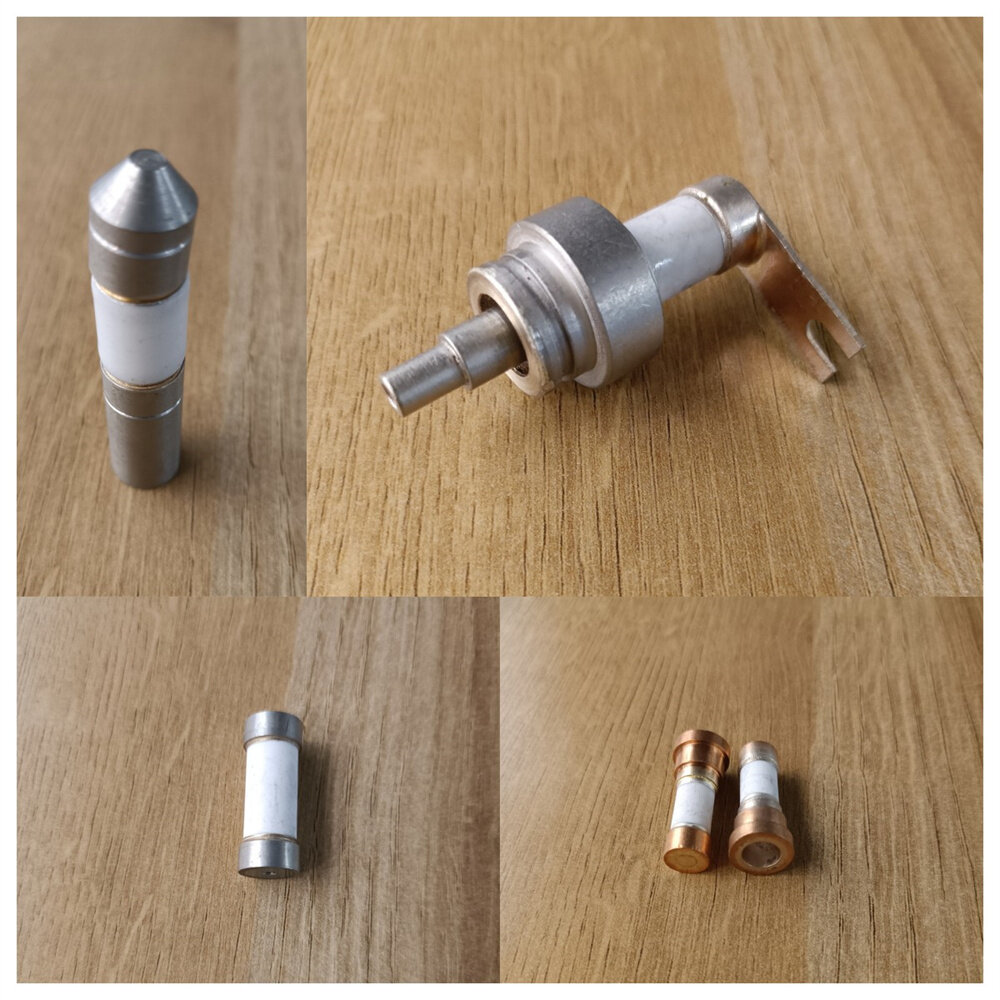

The 21st century runs on advanced materials. From jet engines and nuclear reactors to microelectronics and biomedical implants, ceramics are everywhere. They are revered for their strength, hardness, and resistance to heat and corrosion—qualities that metals can only dream of. But there's a catch: ceramics are notoriously difficult to join. Unlike metals, you can't just weld them; they resist conventional bonding techniques.
Joining a ceramic, such as alumina or silicon carbide, to itself or a metal partner presents a fundamental chemical hurdle: ceramics are poor at being "wetted" by molten metals. Imagine trying to make water stick to a greasy surface—it just beads up. To overcome this, engineers rely heavily on a breakthrough called Active Brazing.
The magic is in the filler metal itself, known as an Active Brazing Alloy (ABA). These alloys are typically based on silver, copper, or gold, but contain a small, crucial amount (usually 1-5%) of a highly reactive element, most often titanium (Ti). When heated, the titanium is the first to react, chemically bonding with the ceramic's surface. This forms a thin, stable reaction layer—a kind of molecular 'velcro'—that the rest of the braze alloy can then easily wet and flow across, creating an atomic-level bond.
Achieving this delicate chemical handshake requires an exceptionally controlled environment, which leads us to the specialized equipment.
For active brazing to succeed, the titanium in the alloy must react with the ceramic, not with oxygen in the air. This is why vacuum furnace brazing is the cornerstone process.
How it works: The ceramic components and the braze alloy are placed inside a sophisticated furnace, and the air is evacuated, creating a high vacuum (often 10−5 to 10−6 Torr). This extreme environment prevents any unwanted oxidation of the active elements and ensures a pure, consistent reaction.
Benefits: It provides uniform heating for complex shapes, precise temperature control across large components, and is indispensable for all active brazing processes.
In cases where high throughput or localized heating is needed, induction brazing offers an alternative.
How it works: The joint is placed within a water-cooled copper coil. A high-frequency alternating current is passed through the coil, generating a fluctuating magnetic field. This field induces electrical (Eddy) currents directly within the braze alloy and adjacent components, causing rapid, localized heating.
Benefits: It is fast, energy-efficient, and ideal for simple joint geometries or repairs where the heat must be precisely managed to avoid damaging surrounding structures.
Brazing is less like welding and more like a chemical cooking recipe where three parameters must be meticulously controlled to ensure success: temperature, time, and pressure.
Temperature: The most critical variable. The peak temperature must be high enough to fully melt the braze alloy (reaching its liquidus temperature) and enable the active element (e.g., Ti) to react with the ceramic and form the desired interface layer. However, it must remain well below the point where the ceramic material itself begins to degrade or undergo structural phase changes. Heating and cooling rates are also strictly controlled to manage internal stresses that could crack the brittle ceramic.
Time: This parameter defines the duration the components spend at the peak brazing temperature. This holding time is the window for the active reaction to occur. Too little time, and the titanium won't form a complete, continuous reaction layer, resulting in an incomplete bond. Too much time, and the reaction layer can grow too thick, leading to the formation of brittle, undesirable intermetallic compounds that weaken the joint's mechanical properties.
Pressure: Often applied using heavy weights, clamps, or by using the furnace's atmospheric capabilities, pressure ensures intimate contact between the ceramic pieces and the molten braze alloy. A small, uniform pressure minimizes gaps, ensures the molten alloy is squeezed into the narrow joint clearance, and prevents the formation of internal gas bubbles or voids that severely compromise strength.
Once a ceramic joint is brazed, the work is only half done. Given the critical, high-performance applications of these components, robust Quality Control (QC) is mandatory. Because the ceramic substrate is opaque and potentially expensive, the primary tools are Non-Destructive Testing (NDT) methods, which inspect the bond without causing damage.
Similar to a medical X-ray, this technique bombards the joint with high-energy photons.
Detection: It is excellent for identifying internal defects, particularly large voids (gas bubbles) or foreign inclusions (contaminants) within the braze layer. Since voids are less dense than the braze alloy, they appear as darker areas on the film or digital detector.
Limitation: It is less effective at finding very thin cracks or incomplete bonds that run parallel to the X-ray beam, as the difference in material thickness is too subtle to register clearly.
This is arguably the most powerful tool for brazed joints, especially for analyzing interfaces. It uses sound waves instead of light or X-rays.
Detection: High-frequency ultrasonic waves are pulsed into the component. When a wave hits a perfect, continuous interface (braze-to-ceramic), most of the energy is transmitted. When it hits an air gap, a void, or an incomplete bond (delamination), the sound wave is nearly 100% reflected. By mapping the reflected sound energy, the acoustic microscope can produce a high-resolution image that explicitly shows the boundary between bonded and unbonded areas. This is the go-to method for assessing the integrity of the active reaction layer.
This is the simplest, most cost-effective method, but it is limited to the surface.
Detecion: A brightly colored or fluorescent liquid penetrant is applied to the surface. Capillary action draws the liquid into any surface-breaking cracks or porosity. The excess penetrant is wiped away, and a white developer is applied. The developer acts like a blotter, drawing the penetrant back out of the defect, making the crack visibly stand out against the white background.
Limitation: It provides no information about the bond integrity deep within the braze joint.
The brazing of ceramics is a high-stakes, precision engineering discipline. By mastering the controlled environments of vacuum furnace brazing and optimizing the critical parameters of temperature, time, and pressure, engineers can achieve an atomic-level bond. Furthermore, sophisticated NDT methods like acoustic microscopy and X-ray radiography provide the necessary assurance that the invisible internal connection is flawless. This synergy of chemistry, control, and non-destructive inspection is what enables ceramic joints to take on the world’s most demanding engineering challenges.
